Briquetting Press

Y83L-630

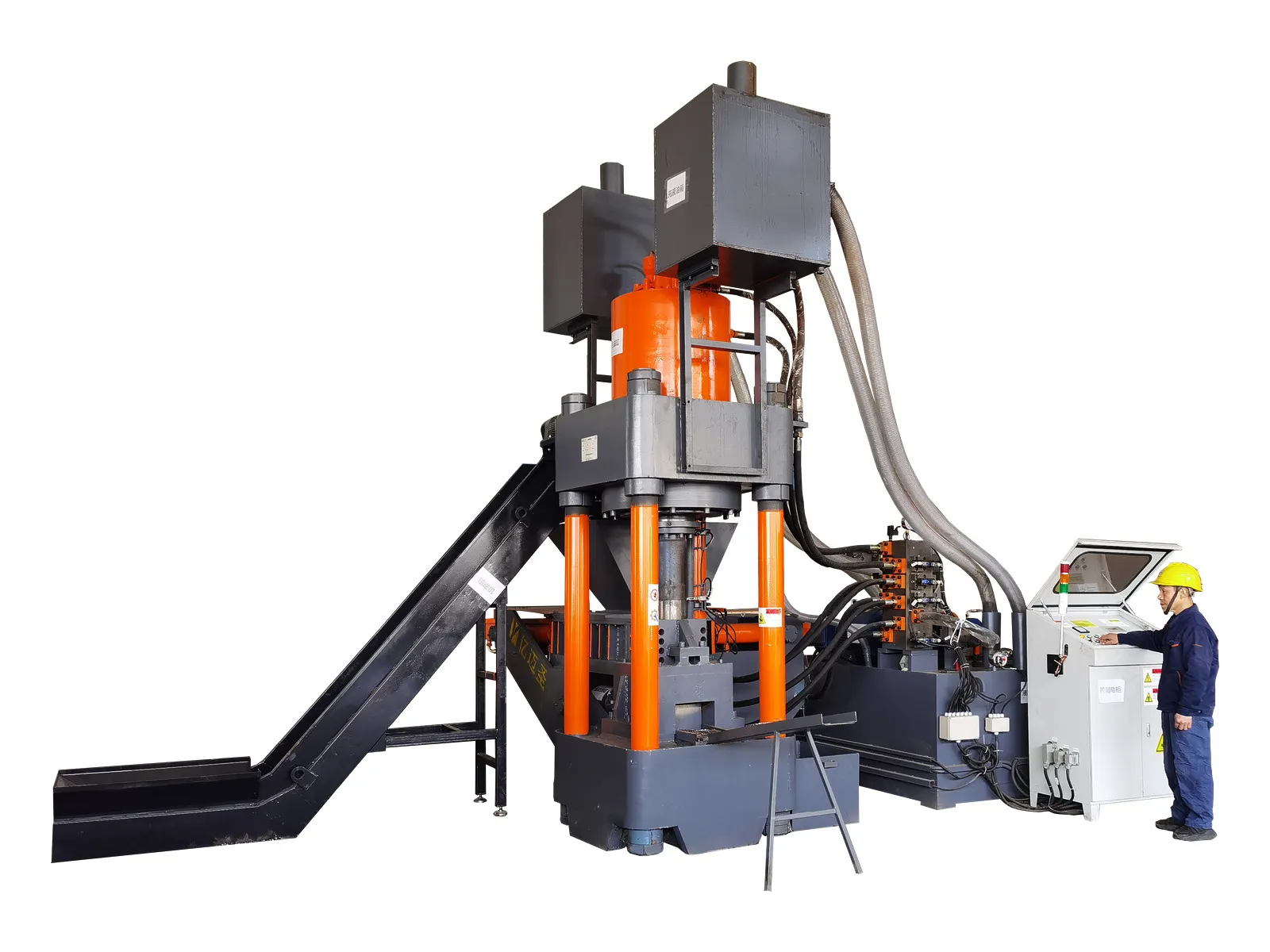

Y83L-630 Vertical Metal Briquetting Press

The Y83L-630 is a 630-ton vertical pre-pressing enclosed hydraulic metal briquetting press for ferrous and non-ferrous machining chips. A pre-pressing cylinder densifies the material before it enters the enclosed die cavity; the main cylinder then cold-compacts it into dense round briquettes, while cutting fluid is squeezed out for recovery.

Selectable Ø130–200 mm dies match briquette size and output to the material. PLC and touchscreen HMI control provide automatic operation, pressure and temperature monitoring, fault indication and process records.

Key advantages

630 Ton Pressing Force

Cold-presses metal chips and turnings into dense briquettes.

130–200 mm Die Range

Selectable dies adapt briquette size and output to the material and target density.

Chip Recycling & Remelting

Turns loose ferrous and non-ferrous machining chips into dense briquettes for easier handling and remelting, while cutting fluid is recovered during pressing.

Y83L-630 vertical metal briquetting press

Y83 Metal Briquetting Press Series · Y83L

Vertical · pre-pressing enclosed

Choose Y83L when longer or fluffier turnings need a more consistent charge within a compact vertical installation.
Compare all Y83 family types
Pressing force630 t

6,300 kN main cylinder

Briquette die130–200 mm

Output changes with the selected die

Materials handledAluminium · steel · copper

Chips, turnings and borings; generally up to 40 mm long × 2 mm thick

Installation5 × 6 m

Approx. 15,000 kg; one 40'HC container

Where Y83L-630 fits

Metal chip and turning processing

Designed for cold briquetting of machining chips, turnings and borings. The published material limit is generally 40 mm in length.

Compact vertical installation

The machine occupies a 5 × 6 m footprint with an overall envelope of 5 × 6 × 5 m.

Published output by material

Aluminium600–1,600 kg/h
Steel1,100–3,500 kg/h
Copper1,500–4,300 kg/h

Range across the published die configurations below. Final output depends on material form, bulk density, die selection and feed conditions.

Technical Specifications

Pressure and cycle

Main pressing force630 t (6,300 kN)
Cycle time≤22 s no-load
OperationPLC automatic operation with HMI

Feed and material

MaterialsAluminium, steel and copper chips, turnings and borings
Maximum material sizeGenerally up to 40 mm long × 2 mm thick

Drive and utilities

Main motor30 kW × 2 (60 kW total)
Power supply200–480 V / 3 Ph / 50–60 Hz or customizable
Hydraulic oilApprox. 1,800 L

Key Features

  • Vertical pressing structure for chip and turning briquetting
  • Twin-pump hydraulic station (30 kW × 2, TAIDA motors)
  • PLC automatic operation (SIEMENS S7-200 Smart) with touchscreen HMI
  • Executes JB/T 3818-2014 and JB/T 8494.2-2012
  • Electrical to GB 5226.1-2008 / IEC 60204-1:2005
  • Body RAL7024 with orange RAL1028 guard

Published Y83L-630 die configurations

Each row is a published die size. Capacity changes with material and die selection; final configuration is confirmed against the material sample and required output.

Briquette dieBriquette heightAluminiumSteelCopperSource row
Ø130 mm≈ 104 mm≤ 600 kg/h≤ 1,100 kg/h≤ 1,500 kg/hNO. 175
Ø140 mm≈ 112 mm≤ 700 kg/h≤ 1,400 kg/h≤ 1,700 kg/hNO. 176
Ø150 mm≈ 135 mm≤ 900 kg/h≤ 1,900 kg/h≤ 2,300 kg/hNO. 177
Ø160 mm≈ 128 mm≤ 900 kg/h≤ 2,000 kg/h≤ 2,400 kg/hNO. 178
Ø180 mm≈ 144 mm≤ 1,300 kg/h≤ 2,700 kg/h≤ 3,300 kg/hNO. 179
Ø200 mm≈ 160 mm≤ 1,600 kg/h≤ 3,500 kg/h≤ 4,300 kg/hNO. 180

Capacity figures are published upper values for the selected material and die. Actual output depends on chip form, bulk density, feed method and operating conditions. Final configuration is confirmed before quotation.

Installation and shipping

Use these figures for early site planning. Confirm access routes, lifting equipment and unloading arrangements against the final released drawing.

Footprint
5 × 6 m
Overall dimensions
5 × 6 × 5 m
Machine weight
Approx. 15,000 kg
Container loading
One press per 40'HC container

Customization Options

Voltage

200–480 V / 3 Ph / 50–60 Hz or customizable

Line Configuration

Optional storage hopper, chain conveyor and shredder

Processed Materials

Aluminum chipsSteel turningsCast iron boringsCopper shavings

In service

A published Y83L-630 application

View all case studies →
Y83L-630 vertical briquetting press referenced in the Bulgarian recycler case
Representative Y83L-630 configuration used for this application.
BulgariaScrap metal recyclingMixed metal chips & turnings

Vertical briquetting for a Bulgarian recycler

A scrap metal recycler in Bulgaria processes mixed chips and turnings bought from regional machine shops. A Y83L-630 vertical briquetting press was specified to convert that loose material into dense briquettes.

Briquetting raises the material's value per tonne and cuts the number of truckloads leaving the yard.

A 630-ton vertical briquetting press for metal chip processing.

Read case study

Y83L-630 documents

Document requests are fulfilled against the current released edition for the selected configuration.

View all downloads
Series Product Introduction

Y83 Series Product Introduction

Series overview covering vertical and horizontal briquetting structures, material flow and the available configuration families.

Language
English
Version
Current edition
Edition
2026-10-21
Request this document
Technical Datasheet

Y83L-630 Technical Datasheet

Current model technical data, including pressure, die configurations, material limits, installation data and shipping arrangement.

Language
English
Version
A/1
Edition
2026-10-30
Download
Operation and Maintenance Manual

Y83 Operation and Maintenance Manual

Operation sequence, safety information, maintenance guidance and common fault procedures for Y83 presses.

Language
English / Chinese
Version
Latest released manual
Edition
2026-10-21
Request this document
No-obligation quotation

Request a Quote for the Y83L-630

Send your material type and daily tonnage — we'll come back with a recommended configuration and pricing within 24 hours.

Prefer to talk? +86-15950122559

Include these details

  • Metal type and form: aluminium, steel or copper chips, turnings or borings
  • Maximum piece length and thickness
  • Required output per hour or per shift
  • Target briquette diameter and density
  • Available voltage, frequency and power capacity
  • Installation footprint, lifting equipment and destination
